China Casting Supplier Verification: The 6-Step System That Saved Us $1.8M

You're a procurement engineer. You've got a $1.2M order for ductile iron valve bodies sitting on your desk. The foundry in Shandong sent you a glossy brochure, an ISO certificate that looks real, and a price that's 37% under your current supplier. Your CFO is pushing you to pull the trigger.

Don't.

Not until you've run this 6-step verification system. We built it after watching three separate buyers lose a combined $1.8M on bad Chinese casting suppliers — substandard metal chemistry, falsified MTRs, disappearing quality deposits. This isn't theory. It's a battlefield-tested protocol used by oil & gas, mining, and heavy equipment procurement teams who can't afford a rejected shipment.

Every step comes with a concrete checklist. Print it. Use it. And when the foundry pushes back on any of it — that's your answer.

"The difference between a good Chinese foundry and a bad one isn't the price. It's the verification you do before you wire the deposit." — Interstate International procurement team, 15 years in China sourcing

Step 1: Validate the Foundry Qualification File (FQF)

You need one document package before anything else: the Foundry Qualification File (FQF). Don't call it that with the supplier — they'll think you're asking for something exotic. Just say "We need your complete qualification package." If they hesitate or send you a 2-page PDF, you're done.

A real FQF contains seven items. No exceptions.

The $180k test: We had a client who requested FQF from three shortlisted foundries. Two sent complete packages within 5 days. The third sent a 3-page "company profile" with stock photos. They went with the two who responded properly. Later, they discovered the third foundry had been cited by a European importer for delivering valve bodies with 0.12% sulfur instead of the specified 0.02% max. That shipment got rejected at Rotterdam — $180k loss for the buyer.

One more thing: check the ISO certificate's scope line carefully. We've seen certificates that say "trading of casting products" or "sales and marketing of industrial parts." That's not a foundry. That's a trading desk with a rented ISO file.

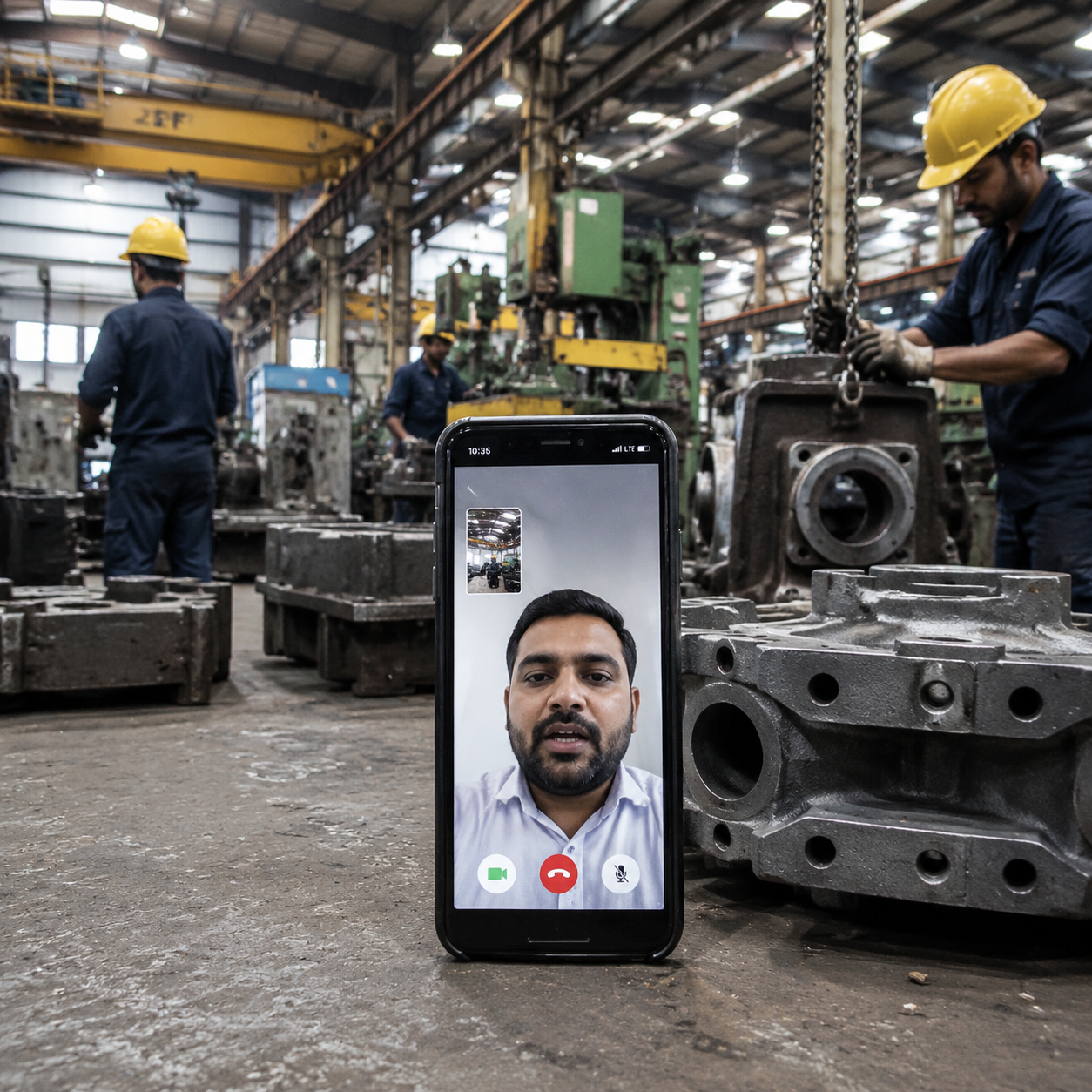

Step 2: Conduct an Unannounced Video Audit

You can't visit every foundry. But you can do a live, unannounced video audit. And you should.

Here's the script: "We're finalizing our approval process. We need a 30-minute live video walkthrough of your production floor, pattern shop, QC lab, and material storage area. We'll call you in 10 minutes. Please start at the main entrance and walk us through."

What you're looking for:

• Housekeeping — Is the floor clean? Are molds stored properly? Or is there oil, debris, and half-finished castings lying around? Housekeeping is a proxy for process discipline.
• Equipment utilization — Are the molding machines running? Or is the foundry a museum of idle equipment? Count the machines and ask what's running.
• QC lab — Do they actually have a spectrometer? Ask to see it. Ask when it was last calibrated. Ask to see a live reading.
• Material storage — Are raw materials segregated by grade? Or is it a pile of mixed scrap? Proper segregation is non-negotiable for consistent chemistry.
• Pattern shop — Do they make their own patterns or outsource? In-house pattern capability is a strong signal of technical competence.

We did a video audit of a "foundry" in Hebei that had impressive photos on their website. During the video call, the "factory floor" turned out to be a rented space with borrowed equipment. The giveaway? They kept the camera angle tight to avoid showing the empty bays next door. When we asked to see the melting area, the call dropped. Twice. That was the only answer we needed.

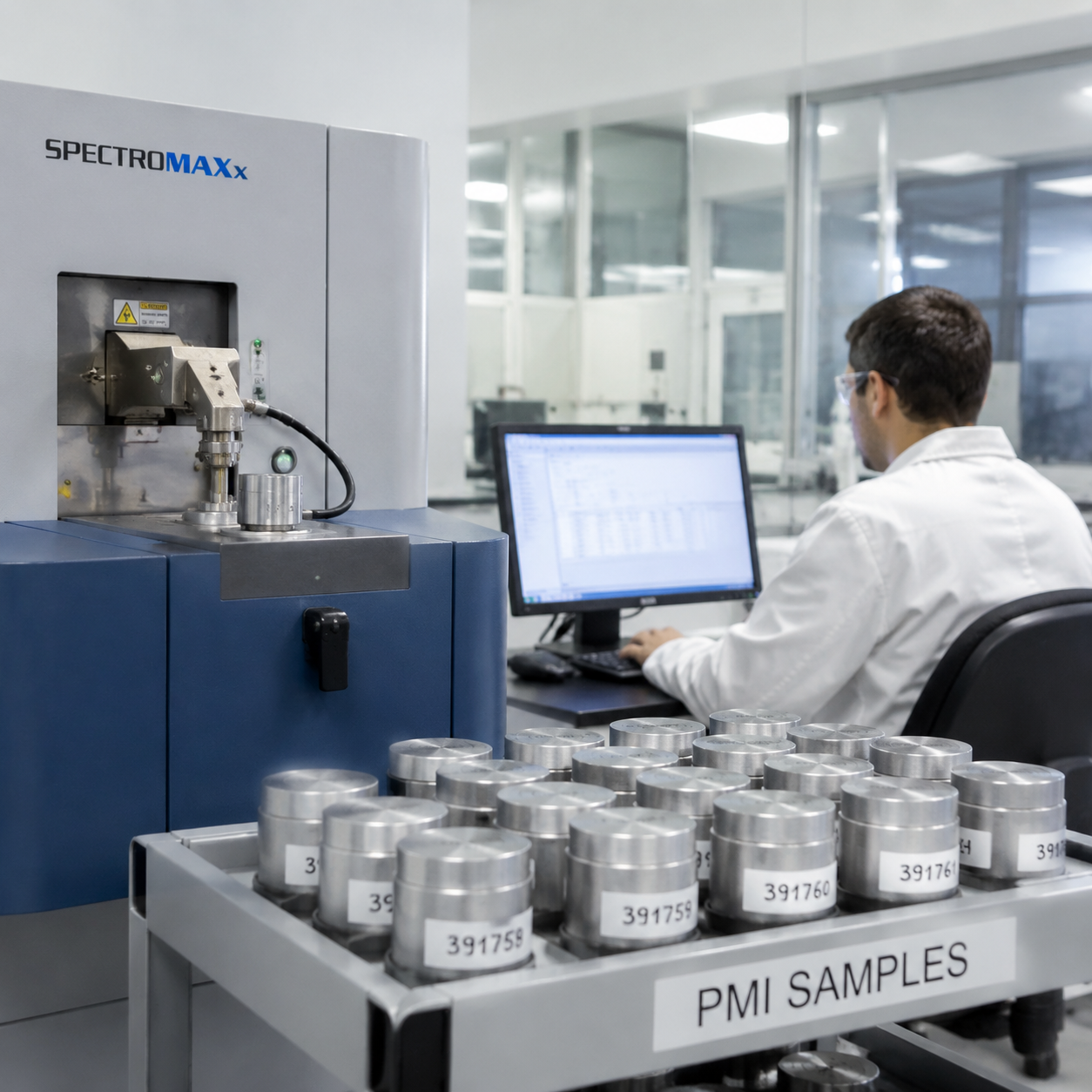

Step 3: Verify Material Certifications Against ASTM Standards

This is where most buyers get burned. A foundry sends you an MTR that looks perfect — chemistry within spec, mechanical properties in range. But the standard referenced on the MTR doesn't match your purchase order. Or the MTR is for a different heat. Or it's simply fabricated.

Three verification layers:

Layer 1: Standard accuracy. If you ordered ASTM A216 WCB, the MTR should explicitly say "ASTM A216-20 Grade WCB." Not "A216 equivalent." Not "similar to WCB." Exactly that. Check the year of the standard — if they're citing a 1990s revision, that's a red flag.

Layer 2: Chemistry traceability. Each MTR should have a unique heat number. Request the foundry's internal melt log for that heat. The chemistry readings from the furnace tap should match the MTR. Discrepancies of more than 0.02% in critical elements (carbon, chromium, molybdenum) mean you need to dig deeper.

Layer 3: Third-party witness testing. For any critical order, insist on witness testing. A sample from the production run is sent to a certified lab (e.g., SGS Materials Lab in Shanghai or Tianjin) for independent chemistry and mechanical testing. The cost is $300–$600 per test. The cost of a failed field installation is $50k+.

Real story: A buyer ordered ASTM A351 CF8M stainless steel valve bodies from a foundry in Zhejiang. The MTR showed 18.5% chromium and 9.2% nickel — within spec. But a routine third-party check revealed the actual material had 15.8% chromium and 7.1% nickel. The foundry had "cherry-picked" the heat samples. The buyer rejected the entire 200-piece lot. Total loss: $340k including shipping and customs. The third-party test cost $520.

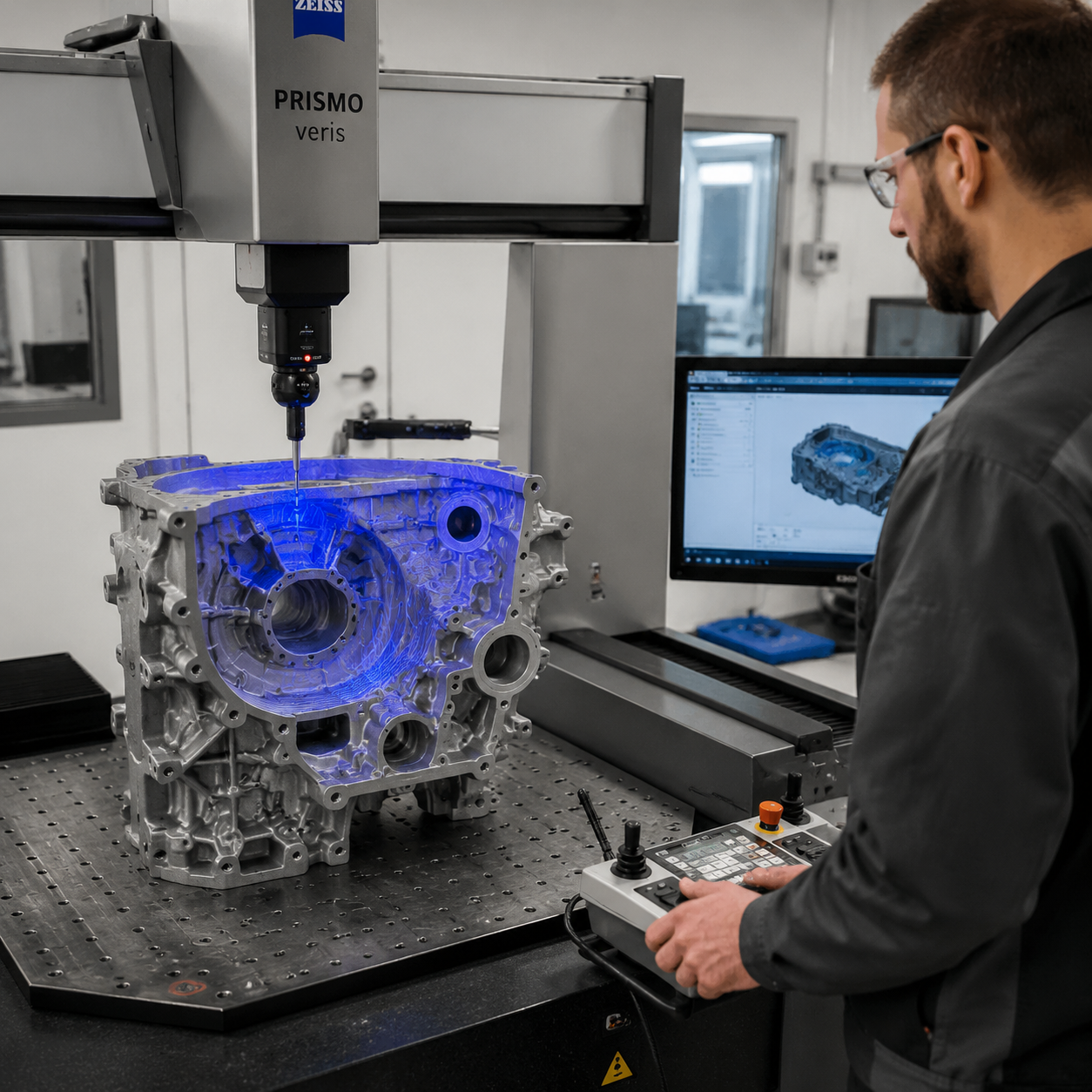

Step 4: Request a Pre-Production Sample (PPS) with Full Dimensional Report

Never — never — go straight to production without a pre-production sample. Even if the foundry has "been doing this for 20 years." Even if they "know the standard." You need a physical sample that represents the actual production process, not a hand-crafted prototype.

The PPS protocol:

• Sample quantity: Minimum 3 pieces from the first production run. One for dimensional inspection, one for material testing, one kept as a reference standard.
• Dimensional report: Every critical dimension must be measured and recorded. Not just "passed/failed" — actual values with tolerance bands. Ask for Cpk values for the 5 most critical dimensions.
• Visual inspection: Surface finish, porosity, flash, mismatch. Take photos under consistent lighting and compare to your standard.
• Process sign-off: The sample must be produced using the same process parameters as the production run — same mold design, same pouring temperature, same cooling time, same heat treatment cycle. No special treatment for the sample.

A foundry in Jiangsu produced "perfect samples" for a mining equipment buyer — machined tolerances within 0.1mm, beautiful surface finish. The buyer approved and ordered 5,000 pieces. What arrived was a different story: rough castings with 3mm mismatch, excessive porosity, and dimensions out by 1.5mm on critical bolt-hole centers. The samples had been hand-finished. The production run was poured from a different mold. The buyer spent 8 months in arbitration. Don't be that buyer.

Step 5: Run a Third-Party NDT Inspection Before Shipment

Your foundry passed steps 1 through 4. The FQF was solid. The video audit looked good. The sample passed dimensional inspection. Now it's time for the real test: non-destructive testing (NDT) on the production batch.

Don't rely on the foundry's in-house NDT report. Use a third-party inspection company with Level II or Level III certified inspectors. The major firms — SGS, Bureau Veritas, TÜV Rheinland, Intertek — all have offices in China's industrial hubs (Shanghai, Tianjin, Qingdao, Guangzhou). They can be on-site within 48 hours.

Which NDT method to use depends on the casting type and defect risk:

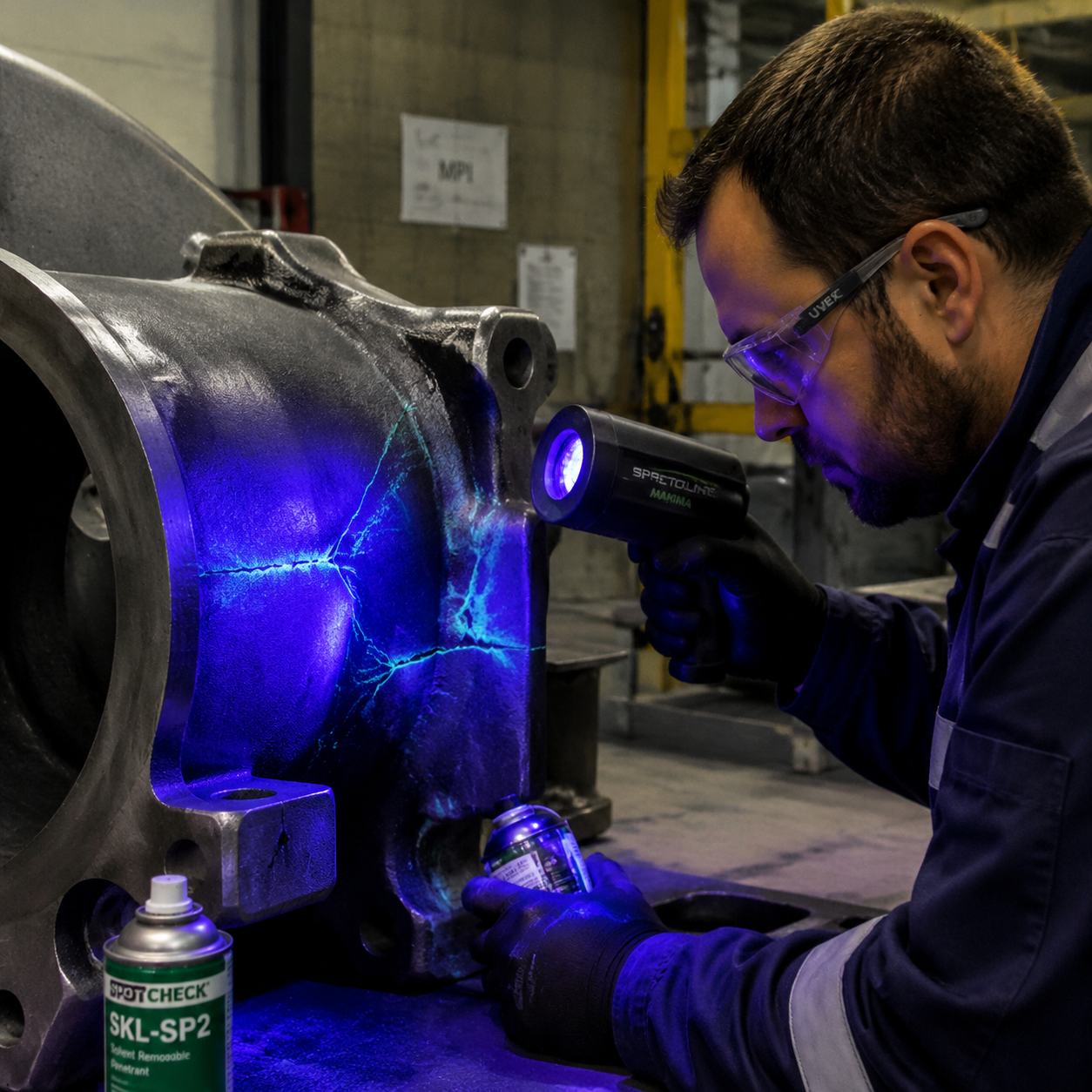

• Magnetic Particle Testing (MT) — For ferromagnetic castings (steel, iron). Detects surface and near-surface cracks, laps, and cold shuts. Fast and relatively cheap ($2–$5 per linear foot).
• Ultrasonic Testing (UT) — For internal defects in thick-section castings. Detects porosity, inclusions, and internal cracks. Essential for pressure-containing parts (valve bodies, pump housings).
• Radiographic Testing (RT) — The gold standard for critical castings. X-ray or gamma-ray imaging reveals internal porosity, shrinkage, and inclusions. Required for Class 1 and Class 2 pressure vessel castings.
• Liquid Penetrant Testing (PT) — For non-ferrous castings (aluminum, bronze). Detects surface-breaking defects.

Sampling plan: For a lot of 500 castings, a typical AQL (Acceptable Quality Level) of 1.0% with normal inspection level II means you inspect 200 pieces. Of those, if 5 or fewer have critical defects, the lot passes. But for safety-critical castings (pressure vessels, lifting equipment, structural components), I'd recommend 100% inspection on the first production run. Yes, it's expensive. But so is a field failure.

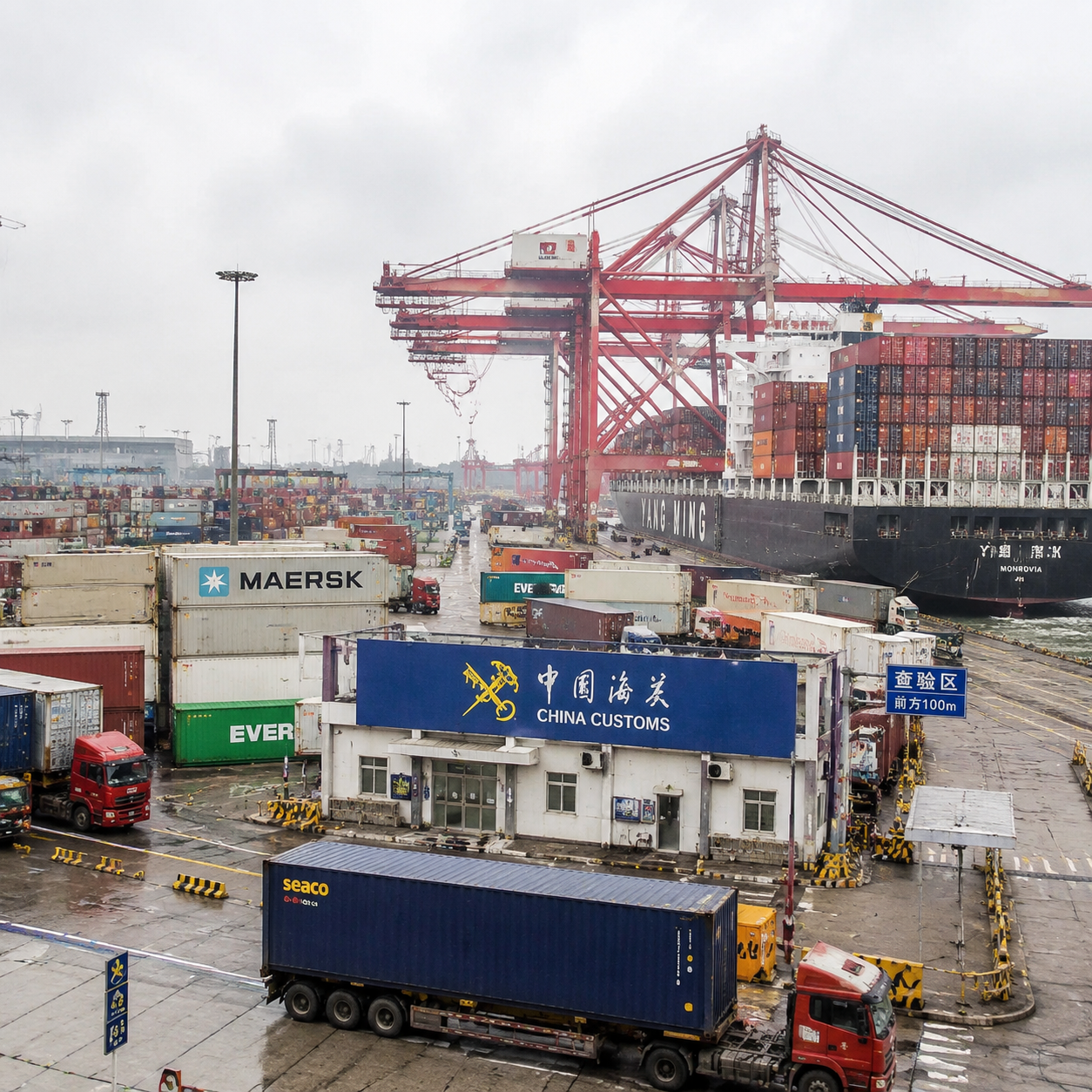

Step 6: Check Export Compliance and Logistics

You've verified the foundry. The castings pass NDT. Now you need to get them out of China and into your facility without getting stuck in customs or slapped with tariff penalties.

Three compliance checks:

Check 1: Export license. Does the foundry have a valid Chinese export license? Some casting categories (certain alloys, dual-use applications) require specific export permits. If the foundry can't produce an export license, your cargo may be seized at the port.

Check 2: Customs classification (HS code). The correct HS code for iron and steel castings is typically 7325.10 (non-malleable iron) or 7325.99 (other). For aluminum castings, it's 7616.99. The wrong code can trigger inspections, delays, and penalties. Verify the code before shipment.

Check 3: Packing and marking. Chinese export regulations require specific marking on all export crates — country of origin, net weight, gross weight, dimensions, and handling instructions. Improper marking is a top reason for customs holds. Also, ensure wooden crates are ISPM-15 compliant (heat-treated or fumigated with the IPPC stamp).

Logistics check: Who's responsible for shipping? If it's FOB Chinese port, you need a freight forwarder who knows casting logistics. Castings are heavy, often irregularly shaped, and prone to shifting during transit. Improperly secured castings have broken through container walls and caused accidents. Insist on proper dunnage and blocking.

One of our clients lost 6 weeks of production because a foundry shipped 10 tons of valve bodies without ISPM-15 compliant crates. Australian customs rejected the shipment. The crates had to be re-processed at a cost of $12,000 and the project was delayed by 45 days. The foundry didn't warn them because "it's never been a problem before." Follow the rules yourself — don't trust the foundry to do it.

Full Verification Process: End-to-End Timeline

Here's the realistic timeline for a thorough verification cycle. Don't cut corners — every step exists because someone got burned skipping it.

• Week 1: Request and review FQF. Cross-check ISO certification. Shortlist foundries. (5 days)
• Week 2: Schedule and conduct video audits of 2–3 shortlisted foundries. (3 days + follow-up)
• Week 3: Issue RFQ with clear ASTM specifications. Request PPS. (5 days for foundry to prepare sample)
• Week 4: Receive PPS, conduct dimensional inspection, send sample for third-party material testing. (5 days)
• Week 5: Approve sample, authorize production run. Schedule third-party NDT. (ongoing)
• Week 6: NDT inspection at foundry. Review results. Approve shipment. Verify export documentation. (5 days)

Total: 6 weeks. Yes, it's slower than just wiring a deposit and hoping for the best. But the alternative — rejected shipments, failed parts, lost customers — is a lot slower. And more expensive.

5 Common Pitfalls in Chinese Casting Supplier Verification

These are the mistakes we've seen procurement teams make — often more than once — when verifying Chinese foundries.

1. Skipping the FQF because "the factory looks good on Alibaba." Alibaba listings are marketing, not verification. We've found foundries with 5-star ratings that had no ISO certification and no in-house QC lab. The rating system rewards fast shipping, not quality.
2. Accepting a generic MTR without a heat number. If the MTR doesn't have a unique heat number traceable to the production run, it's worthless. Foundries have been known to "recycle" MTRs from previous orders. Demand heat-specific documentation.
3. Approving a sample that was hand-finished. Hand-finished samples hide the true capability of the production process. Insist that samples are produced using the same mold, same process, same parameters as the production run. No special treatment.
4. Using the foundry's in-house NDT as the final word. In-house NDT is valuable for process control, but it's not independent. Third-party inspection is your insurance policy. For orders above $50k, it's non-negotiable.
5. Ignoring export compliance until the cargo is at the port. Export licenses, HS codes, and packing standards can take weeks to sort out. Start the compliance check in week 1, not week 6. A customs seizure is a nightmare you don't want to deal with.

Frequently Asked Questions

Next Steps: Stop Guessing, Start Verifying

You've got the system. Now use it.

Download our Foundry Verification Checklist — a printable one-pager with all 6 steps, the FQF document list, ASTM standard references, and NDT sampling plan. It's what our own procurement team uses on every China casting sourcing project.

Or if you're in the middle of a sourcing project and need a quick second opinion on a foundry you're evaluating — send us their FQF (what they've shared so far) and we'll do a 30-minute rapid review. No charge, no obligation. Just a fresh pair of eyes from people who've seen it all.

One last thing: The $1.8M we mentioned in the title? That's real. Three buyers, three separate projects, all three could have been avoided with this 6-step system. One skipped the FQF step. One relied on in-house NDT. One ignored export compliance. Don't be number four.

Verify hard. Source smart.
